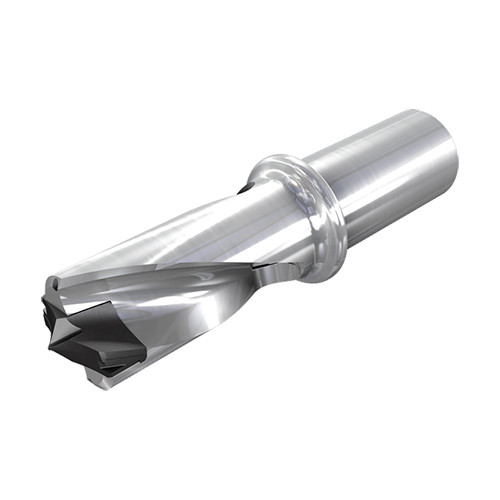

DFN 1339-200-125A-1.5D-IQ
Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 1.5xD

Spécifications des produits

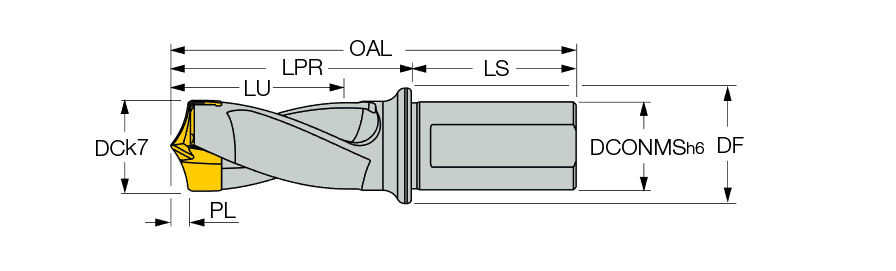

Diamètre coupant (DC) | 1.339″ | Longueur attachement (LS) | 2.36″ |
Longueur utile (LU) | 2″ | Prédisposition pour lubrification interne (CSP) | Coolant Thru |
Type de queue | Weldon | Type de mesure | Inch |
Application | | Perçage | | Identification plaquette étalon (MIID) | HFP 340 |
Diamètre connexion côté machine (DCONMS) | 1-1/4″ | Point Length (PL) | 0.3″ |
Code taille logement plaquette (SSC) | 34.0 | Matière du corps | Steel |
Diamètre coupant Maximum (DCN) | 1.339″ | Diamètre collerette (DF) | 1.65″ |
Diamètre coupant Maximum (DCX) | 1-3/8″ | Equivalent décimal | 1.339″ |
Longueur dépassement (LPR) | 3.55″ | Body Diameter Reduced (BDRED) | 1.65″ |
Longueur fonctionnelle (LF) | 3-1/4″ | Shank Diameter Tolerance (TCDMM) | h6 |
Longueur hors tout (OAL) | 5.91″ | Unité | I |


Caractéristiques du produit
DescFamille | Drill body with exchangeable heads, internal coolant holes and flat shank. Drilling depth: 1.5xD | COO | Israel |
Remarques | Do not mount smaller drilling heads other than the specified range of the drill body |
Informations de livraison
Poids par pièce
1.9401
